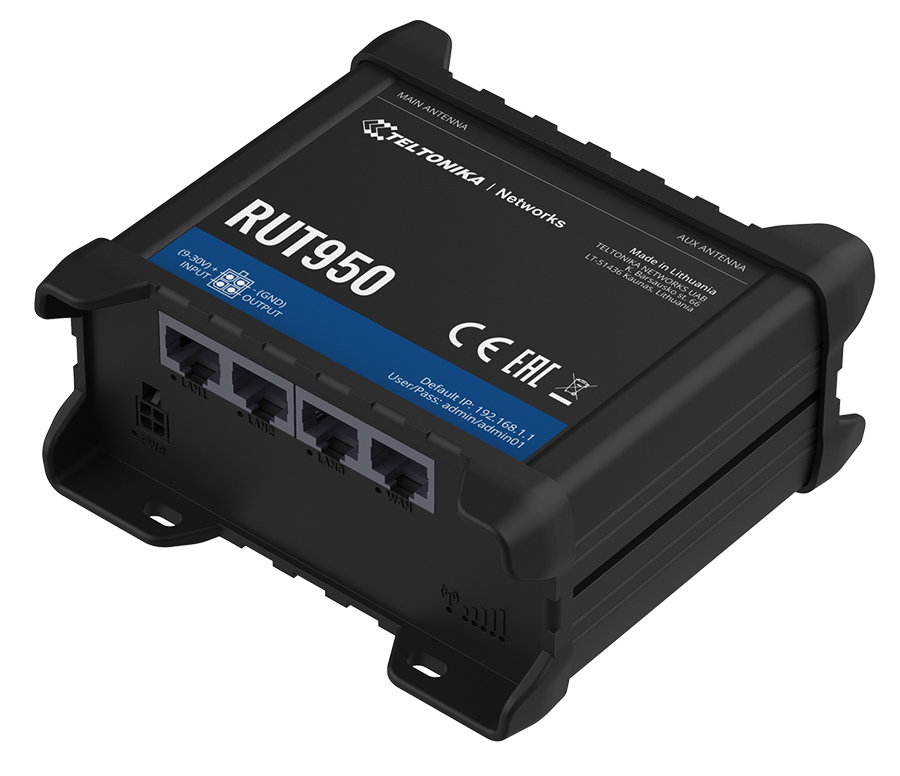

TELTONIKA industrial cellular router RUT950, 4G LTE Cat 4, Wi-Fi


Άμεσα διαθέσιμο στην κεντρική αποθήκη.Παραλαβή από το κατάστημα ή αποστολή στο χώρο σας, από 1 – 3 εργάσιμες ημέρες.

1 σε απόθεμα

Κωδικός προϊόντος: 4779027311289 Κατηγορίες: ,



TELTONIKA industrial cellular router RUT950, 4G LTE Cat 4, Wi-Fi

-Connectivity, 4G/LTE (Cat 4), 3G, 2G
-WAN failover, Automatic switching to available Backup connection
-WIFI, Wireless Access Point with Hotspot functionality
-DUAL SIM, With auto failover, backup WAN and other switching scenarios
-Eτthernet, 4x Ethernet interfaces with VLAN functionality
-RMS, Compatible with Teltonika Remote Management System

Τεχνικά χαρακτηριστικά
Mobile module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps
SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status: Signal strength, SINR, RSRP, RSRQ, Bytes sent/received
Bridge: Direct connection (bridge) between mobile ISP and device on LAN
Passthrough: Router assigns its mobile WAN IP address to another device on LAN
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
WiFi: WPA2-Enterprise (with external/internal Radius server), WPA2-PSK, WPA-PSK, WEP, MAC Filter
WiFi security: WPA2-Enterprise – PEAP, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
SSID: SSID stealth mode and access control based on MAC address
WiFi users: Up to 100 simultaneous connections
Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, built in customizable landing page

WAN: 1 x WAN port (can be configured to LAN) 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
LAN: 3 x LAN ports, 10/100 Mbps, comply IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP)
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL)
VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
DHCP: Static and dynamic IP allocation, DHCP Relay
QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS: Supported >25 service providers, others can be configured manually

Authentication: Pre-shared key, digital certificates, X.509 certificates
Firewall: Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
WiFi security: WPA2-Enterprise – PEAP, EAP-TLS, TLS, TTLS. AES-CCMP, TKIP, Auto Cipher modes. Client separation
VLAN: Port based and tag based VLAN separation
Mobile quota control: Set up custom data limits for both SIM cards
WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only
Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter

OpenVPN: Multiple clients and server can be running simultaneously, 12 encryption methods
IPsec: IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256)
GRE: GRE tunnel
PPTP, L2TP: Client/Server services can run simultaneously
Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code
SSTP: SSTP client instance support
ZeroTier: ZeroTier VPN

ID range: 1-255
Allow Remote Access: Allow access through WAN
Custom registers: Modbus TCP custom register block requests, which read/write to a file inside the router, and can be used to extend Modbus TCP Slave functionality

Supported functions: 01, 02, 03, 04, 05, 06, 15, 16
Supported data formats: 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit float (Big endian, Big endian with byte-swapped, Little endian, Little endian with byte-swapped)

Protocol: HTTP(S), MQTT, Azure MQTT

MQTT gateway: Allows sending commands and receiving data from Modbus Master through MQTT broker

CPU: Atheros Wasp, MIPS 74Kc, 550 MHz
RAM: 128 MB, DDR2
FLASH memory: 16 MB SPI Flash

Input: 1 x Digital non-isolated input (on 4 pin power connector)
Output: 1 x Digital open collector output (30 V, 300 mA, on 4 pin power connector)

Connector: 4 pin industrial DC power socket
Input voltage range: 9 – 30 VDC (4 pin industrial socket), reverse polarity protection; surge protection >31 VDC 10us max
PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards
Power consumption: < 2 W idle, < 7 W Max

Ethernet: 4 x RJ45 ports, 10/100 Mbps
I/O’s: 2 Inputs/Outputs pin on 4 pin power connector (available from HW revision 1600)
SIM: 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
Power: 4 pin power connector with 2 pins for Input/Output
Input/Output: 2 programmable Inputs/Outputs
Antennas: 2 x SMA for LTE, 2 x RP-SMA for WiFi antenna connectors
Reset: Reset/restore to default button

Casing material: Aluminium housing, plastic panels
Dimensions: 100 x 110 x 50 mm (L x W x H)
Weight: 280 g
Mounting options: DIN rail (can be mounted on two sides), flat surface placement

Περιεχόμενα συσκευασίας
2x LTE antennas (swivel, SMA male)
2x WiFi antennas (swivel, RP-SMA male)
24 W Euro PSU
Ethernet cable (1.5 m)
QSG (Quick Start Guide)

Επιπλέον πληροφορίες

Βάρος 0.610 kg
